Karma Ergo Lite 2 Ultra Lightweight Wheelchair
The Karma Ergo Lite 2Â is an ultralight aluminum wheelchair with the ergonomic features of the Ergo Lite. Transfer easily on and off the wheelchair with the detachable swing-away footrest. You can choose between the attendant-propelled or the self-propelled type.
Ultralight and Sturdy
We strive to make the caretaker’s life easier. Weighing at a mere 8.5kg for the attendant-propelled wheelchair, the ultralight weight lowers the risk for back injury by reducing the physical effort required to lift it. In addition, the rear wheels and the footrests of the self-propelled wheelchair are detachable, reducing the weight to 6kg. Sturdy and safe.
Detachable Swing-Away Footrest
Allows for easy transfer, on and off the wheelchair and detaches with no tools required.
Compact and Portable
The Ergo Lite 2 weighs only 6 kg after removing the rear wheels and footrests. This makes storage and transport much easier.
Ergo Handrim
The new ergonomic hand-rims provide comfort and greater mobility for better propulsion and efficient braking.

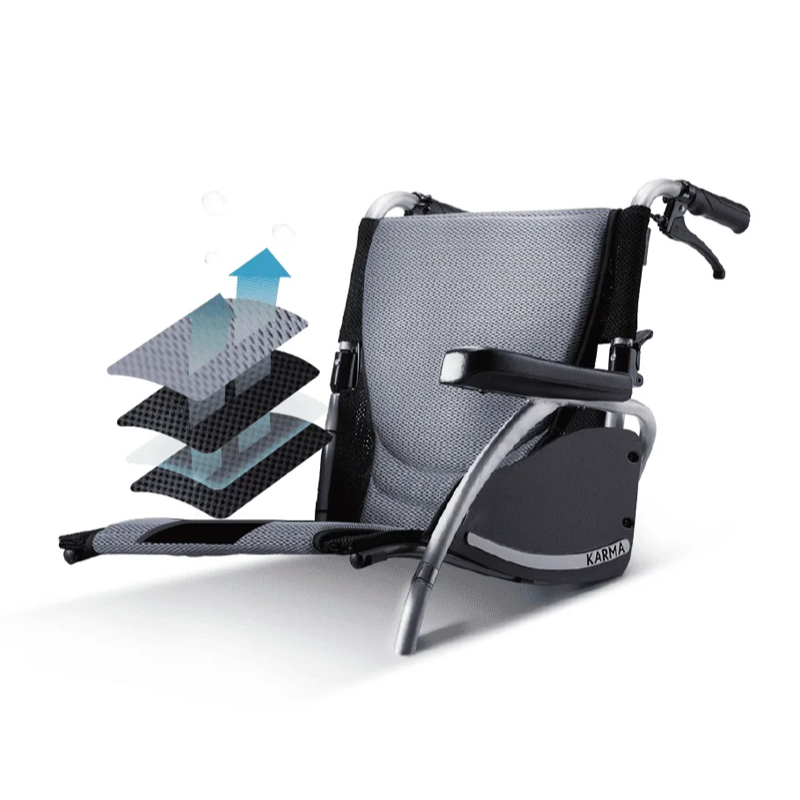

AEGIS Microbe Shield
The upholstery is treated with Aegis microbe shield, which is approved by the FDA, EPA, EU, The anti-microbial upholstery inhibits bacterial and fungal growth, eliminates odor and is designed for easy cleaning. It is a shield for your health.
Features :
- Ultra light frame from 8.7kg (19lbs) complete
- Detachable footrest hangers

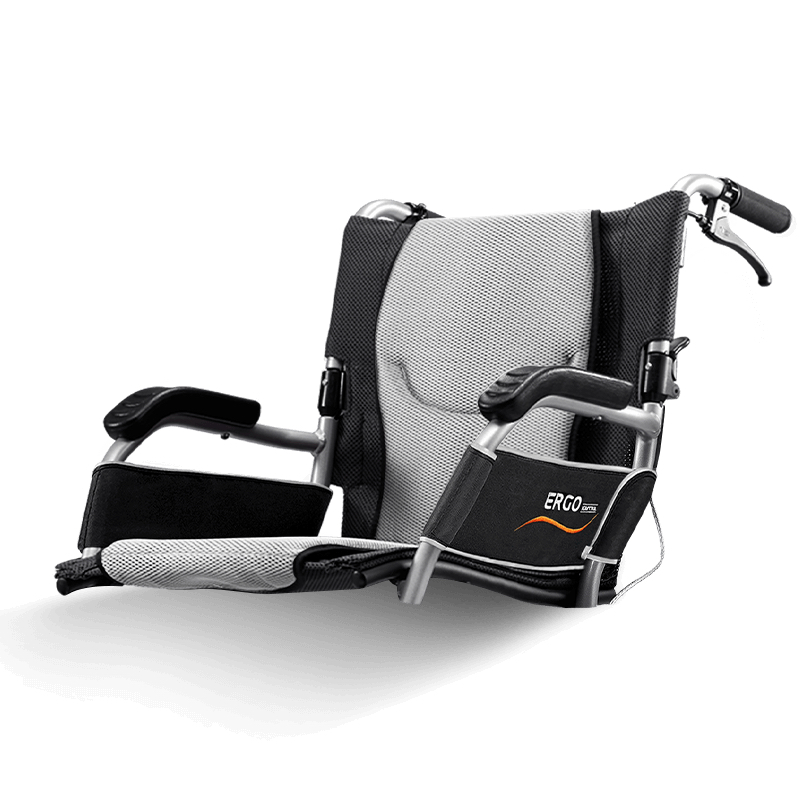

- S-Ergo system provides pressure relief and reduces sliding
- Aegis microbe shield permanently bonded antimicrobial barrier
- Half folding back rest for easy transportation
- Fixed armrests
- Folding frame
- Comfortable & durable upholstery

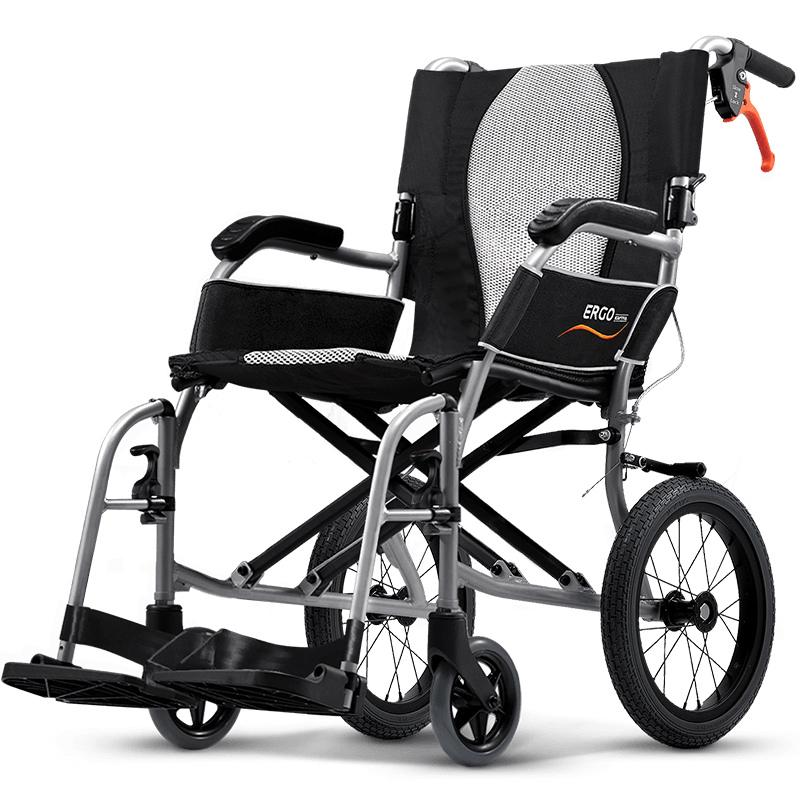

Ergo Lite 2 Attendant Version
The Ergo Lite 2 attendant from Karma Mobility is one of the most lightweight wheelchairs that you’ll find throughout our range. Weighing in at just 8.7kg it is highly practical and comes with the well-loved S-Ergo seating system that provides pressure relief, reducing the chances of the user sliding down the seat.
The lightness of this wheelchair in no way affects the stability or reliability of it and it has some of the most innovative features included. The chair features detachable footrest hangers, an Aegis microbe shield, fixed arm rests, stylish upholstery, a folding frame and half folding back rest for easy transportation.

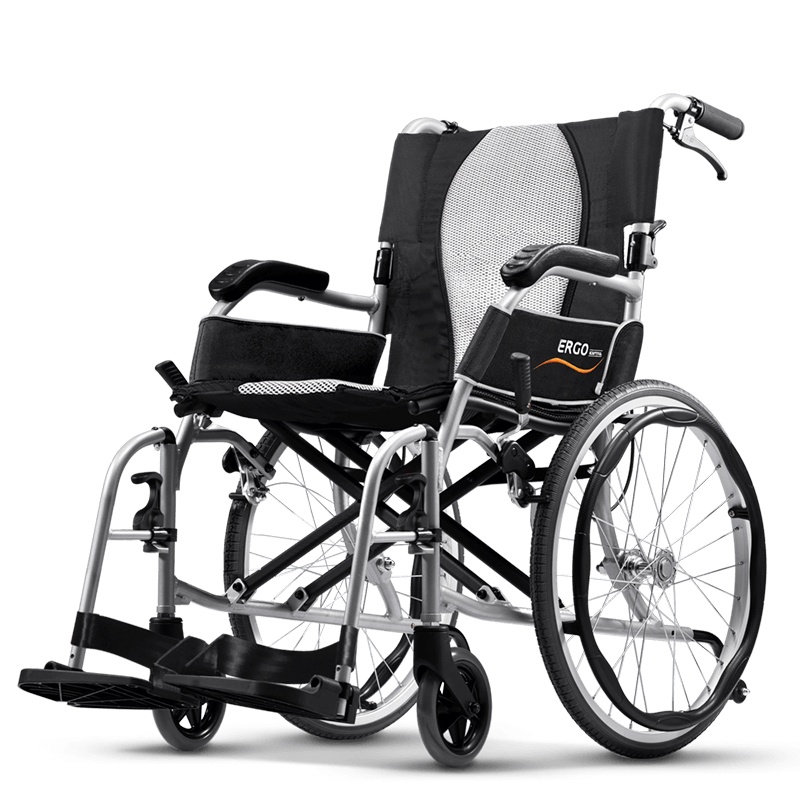

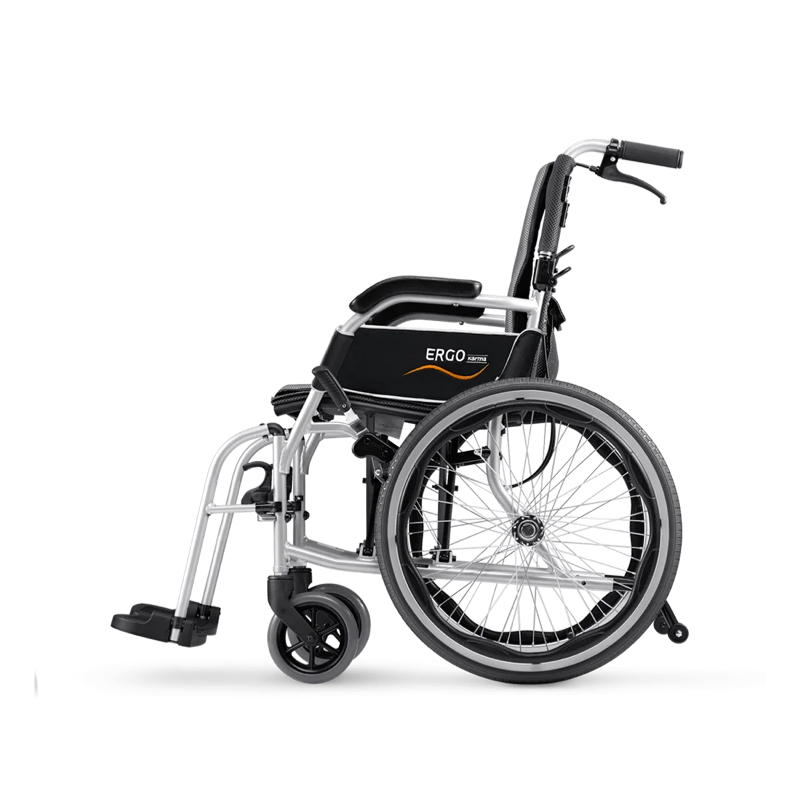

Ergo Lite 2 Self Propel Version
The Ergo Lite 2 is a lightweight self-propel wheelchair from Karma Mobility, weighing just 10.3kg when it is complete which makes it easy to navigate for both user and attendant. It comes with our innovative S-Ergo seating system which has a shaped seat help to ensure the user stays upright and comfortable instead of sliding.
Without the wheels and footrest hangers the wheelchair weight comes down to just 6.4kg making it easy to transport and store. It has an Aegis microbe shield and durable upholstery which is available in a variety of colour.
The Ergo Lite 2 wheelchair is an exceptional piece of mobility equipment and comes at an affordable price.
Ergo Lite 2 has solid tyres as standard, we can fit pneumatic tyres as an option to the Self Propel version if required.Â
Features :
- Ultra light frame from 10.4kg (23lbs)
- Breaks down to 6.4kg (14lbs) without wheels and footrest hangers
- Detachable footrest hangers
- S-Ergo system provides pressure relief and reduces sliding
- Aegis microbe shield permanently bonded antimicrobial barrier
- Half folding back rest for easy transportation
- Fixed armrests
- Folding frame
- Comfortable & durable upholstery
Specifications:
16" Seat Width Transit (Attendent) Version
- Normal Seat Width: 40cm (16")
- Nominal Seat Depth: 42cm (16.5")
- Front Caster / Rear Wheel Size: 6" / 14"
- Backrest Height: 42cm (16.5")
- Armrest To Seat Distance: 21.5cm (8.4")
- Front Location Of Armrest Structure: 31cm (12.2")
- Seat Surface Height At Front Edge: 48cm (18.8")
- Footrest To Seat Distance: 36cm - 41cm (14.1" - 16.1")
- Effective Seat Width: 40cm (16")
- Effective Seat Depth: 43cm (16.9")
- Seat Plane Angle: 5°
- Backrest Angle: 11°
- Seat To Backrest Angle: 96°
- Leg To Seat Angle: 102°
- Overall Length With Legrest: 93.5cm (36.8")
- Overall Width: 57cm (22.4")
- Overall Height: 90cm (35.4")
- Folded Length: 63.5cm (25")
- Folded Width: 28cm (11")
- Folded Height: 70cm (27.5cm)
- Total Mass: 9.2kg
- Mass Of The Heaviest Part: 8.1kg
- Maximum User Weight: 100kg
- Minimum Turning Radius: 81cm (31.8")
- Minimum Turning Radius Without User: 72.5cm (28.5")
- Pivot Width: 114cm (44.8")
- Static Stability Downhill: 18.1°
- Static Stability Uphill: 10.8°
- Static Stability Sideways: 11.9°
- Horizontal Location Of Axle: 2cm (0.7")
18" Seat Width Transit (Attendent) Version
- Normal Seat Width: 45cm (18")
- Nominal Seat Depth: 42cm (16.5")
- Front Caster / Rear Wheel Size: 6" / 14"
- Backrest Height: 42cm (16.5")
- Armrest To Seat Distance: 21.5cm (8.4")
- Front Location Of Armrest Structure: 31cm (12.2")
- Seat Surface Height At Front Edge: 48cm (18.8")
- Footrest To Seat Distance: 36cm - 41cm (14.1" - 16.1")
- Effective Seat Width: 40cm (16")
- Effective Seat Depth: 43cm (16.9")
- Seat Plane Angle: 5°
- Backrest Angle: 11°
- Seat To Backrest Angle: 96°
- Leg To Seat Angle: 102°
- Overall Length With Legrest: 93.5cm (36.8")
- Overall Width: 61.5cm (24.2")
- Overall Height: 90cm (35.4")
- Folded Length: 63.5cm (25")
- Folded Width: 29.5cm (11.6")
- Folded Height: 71cm (27.9")
- Total Mass: 9.3kg
- Mass Of The Heaviest Part: 8.3kg
- Maximum User Weight: 100kg
- Minimum Turning Radius: 84cm
- Minimum Turning Radius Without User: 75cm (29.5")
- Pivot Width: 116cm (45.6")
- Static Stability Downhill: 18.1°
- Static Stability Uphill: 10.8°
- Static Stability Sideways: 11.9°
- Horizontal Location Of Axle: 2cm (0.7")
16" Seat Width Self Propel Version
- Normal Seat Width: 40cm (16")
- Nominal Seat Depth: 42cm (16.5")
- Front Caster / Rear Wheel Size: 6" / 20"
- Backrest Height: 42cm (16.5")
- Armrest To Seat Distance: 21.5cm (8.4")
- Front Location Of Armrest Structure: 31cm (12.2")
- Seat Surface Height At Front Edge: 48cm (18.8")
- Footrest To Seat Distance: 36cm - 41cm (14.1" - 16.1")
- Effective Seat Width: 40cm (16")
- Effective Seat Depth: 43cm (16.9")
- Seat Plane Angle: 5°
- Backrest Angle: 11°
- Seat To Backrest Angle: 96°
- Leg To Seat Angle: 102°
- Overall Length With Legrest: 93cm (36.6")
- Overall Width: 59.5cm (23.4")
- Overall Height: 90cm (35.4")
- Folded Length: 69.5cm (27.3")
- Folded Width: 28cm (11")
- Folded Height: 70cm (27.5cm)
- Total Mass: 10.7kg
- Mass Of The Heaviest Part: 6.7kg (20Q) or 9.7kg (20F)
- Maximum User Weight: 100kg
- Minimum Turning Radius: 82cm (31.8")
- Minimum Turning Radius Without User: 73.5cm (28.9")
- Pivot Width: 115cm (45.2")
- Static Stability Downhill: 17.9°
- Static Stability Uphill: 10.1°
- Static Stability Sideways: 11.4°
- Handrim Diameter: 43cm (16.9")
- Horizontal Location Of Axle: 0.5cm (0.2")
18" Seat Width Self Propel Version
- Normal Seat Width: 45cm (18")
- Nominal Seat Depth: 42cm (16.5")
- Front Caster / Rear Wheel Size: 6" / 20"
- Backrest Height: 42cm (16.5")
- Armrest To Seat Distance: 21.5cm (8.4")
- Front Location Of Armrest Structure: 31cm (12.2")
- Seat Surface Height At Front Edge: 48cm (18.8")
- Footrest To Seat Distance: 36cm - 41cm (14.1" - 16.1")
- Effective Seat Width: 45cm (18")
- Effective Seat Depth: 43cm (16.9")
- Seat Plane Angle: 5°
- Backrest Angle: 11°
- Seat To Backrest Angle: 96°
- Leg To Seat Angle: 102°
- Overall Length With Legrest: 93cm (36.6")
- Overall Width: 64.5cm (25.3")
- Overall Height: 90cm (35.4")
- Folded Length: 69.5cm (27.3")
- Folded Width: 29.5cm (11.6")
- Folded Height: 71cm (27.9")
- Total Mass: 10.7kg
- Mass Of The Heaviest Part: 6.9kg (20Q) 9.8kg (20F)
- Maximum User Weight: 100kg
- Minimum Turning Radius: 84cm (33")
- Minimum Turning Radius Without User: 76cm (29.9")
- Pivot Width: 118cm (46.4")
- Static Stability Downhill: 17.9°
- Static Stability Uphill: 10.1°
- Static Stability Sideways: 11.4°
- Handrim Diameter: 43cm (16.9)
- Horizontal Location Of Axle: 0.5cm (0.2")
